WIB2 - NAVTEX for PC and Notebook
WIB2B - NAVTEX and Barograph for PC and Notebook



490kHz (national language)
518kHz (english)



  • Digital receiver for 490kHz and 518kHz
  • Simultaneous reception on both frequencies
  • Internal ferrite rod antenna, no antenna installation necessary
  • The equipment is used like a USB-stick (only WIB2)
  • Dimensions only 90x57x23 mm
  • Internal batteries for approx. 3 days cont. operation without PC
  • The batteries will be charged via PC
  • Non volatile data memory for 762000 characters
  • Automatical message administration
  • A charger for 12/24V or 230V is optionally available
WIB2

NAVTEX from the costal radio stations

A connection between WIB2 and PC will be established via USB. The WIB2 will be recognized as USB memory device. (data memory)

The NAVTEX messages are stored on this data medium in HTML code.

The data will be shown an th PC monitor via a webbrowser.

No software installtion is necessary.

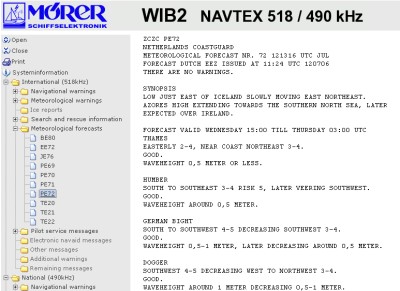

You can start a demo, by clicking on the right Picture.

WIB2-Demo

Barograph (only WIB2B)

Barograph

With the help of the internal precision-air-pressure-sensor the air pressure will be stored during a period of max. seven days.
The air pressure process can be indicated on the PC in form of a gradient.

To display the atmospheric pressure a Windows software is included in the scope of supply of the WIB2B. The program runs on Windows 2000 / XP and Vista.

The WIB2 is suitable for:

  • Windows XP
  • Windows Vista
  • Windows 7
  • Windows 8
  • Windows 10
  • Mac OS
  • Linux

The WIB2B is suitable for:

  • Windows XP
  • Windows Vista
  • Windows 7
  • Windows 8
  • Windows 10

ACCESSORIES:



12/24 V DC charger. For continuous operation on board, independently of the PC.
Item-No. 38153



230 V AC charger.
Item-No. 38154
