WIB2/WIB2B WIB2BX WIB2D WIB3 WIBD WIBE

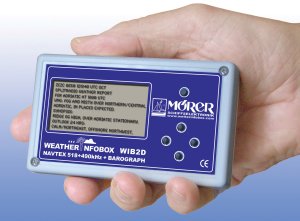

WIB2D Mini NAVTEX receiver and barograph



  • Digital receiver for 490kHz and 518kHz,
  • Internal ferrite rod antenna - no external antenna installation required,
  • Display of  air pressure trends over the past 48 hours,
  • Automatic message decoding,
  • Internal battery (up to 3 days continuous operation) battery charging through USB lead, 12 V DC cable or optional 230 V charger,
  • Case dimensions: 103 x 62 x 26,5mm,
  • Software for Windows 2000, XP, VISTA.
WIB2D

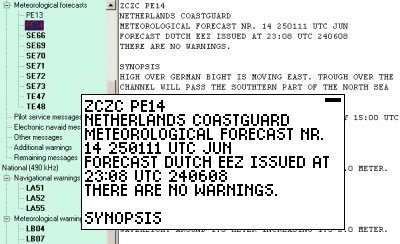

NAVTEX from the costal radio stations

NAVTEX

The device receives the NAVTEX messages of the coastal radio stations at the same time on 518 kHz (in English) and 490 kHz (national language).



The NAVTEX messages are displayed via WIB2D's LCD or with PC.



NAVTEX messages includes, e.g.:

- Nautical warnings
- Distress at sea
- Weather reports
- Gale warnings

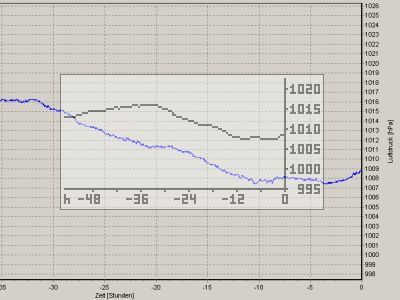

Barograph

With the help of the internal precision-air-pressure-sensor the air pressure will be stored during a period of max. seven days.



On the display of the device the air pressure of the past 48 hours can be indicated.



Air pressure data is available on the PC over a 7 day period.



In addition to air pressure course the three-hours-air pressure trend is also available.

Barograph

ACCESSORIES:



Carrying case
Item-No. 38160



230 V AC charger.

Item-No. 38154

Copyright (C) 2006 Mörer Schiffselektronik.

Deutsch

English

Deutsch English



Latest Software-updates

WIBE:
New! Software Version 1.2.9

There are changes in the fax schedule of the DWD for the time from the 06/10/2008 - 10/15/2008. This changes are included in software version 1.2.9.

WIB3:
Software Version 1.2.13
Firmware Version 1.0.8

Starting from the WIB3 firmware version 1.0.6 an error in the message administration was repaired. Devices with an older firmware should therefore be updated.

WIB2:
Software Version 1.0.5

WIB2B / WIB2D /WIB2BX:
Software Version 1.0.5

Starting from the WIB2D firmware version 1.0.3 an error which can lead to display wrong barometer data was repaired. Devices with an older firmware should therefore be updated.

WIBD:
New: Software Version 1.0.9

Starting from the WIBD software version 1.0.7 an error in displaying messages was repaired. Devices with an older firmware should therefore be updated.



New informationen

Now WIBE software and user manual are also available in english language.

To Downloads >>

The WIB3-Software now contains a Synop decoder. The Synop stations are represented as arrows in a map. Additionally the data can be indicated in plain text.

Further information >>



pdf Flyer WIB2D
pdf Flyer Weather-Infobox 2008
pdf Flyer WIB Europe Accessories
